1. Molecular Basis and Useful Mechanism
1.1 Healthy Protein Chemistry and Surfactant Actions

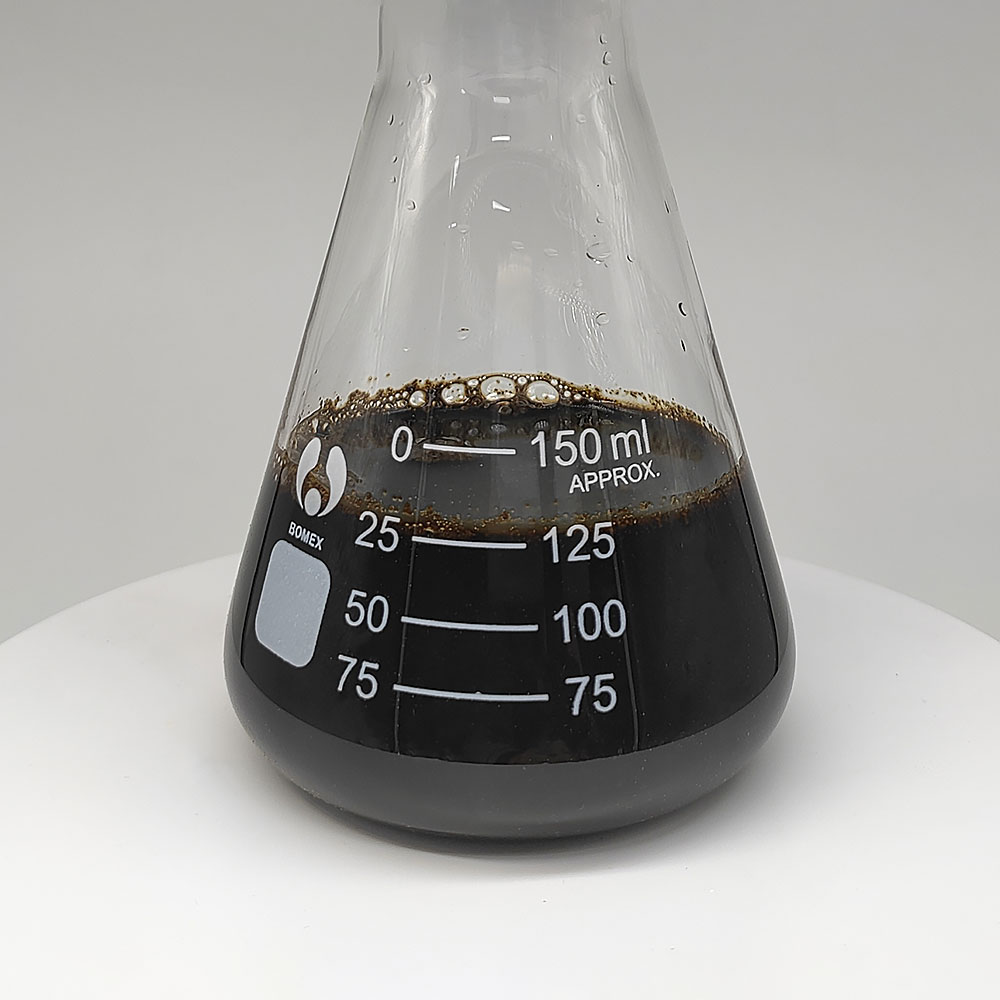

(TR–E Animal Protein Frothing Agent)
TR– E Animal Healthy Protein Frothing Agent is a specialized surfactant stemmed from hydrolyzed pet healthy proteins, primarily collagen and keratin, sourced from bovine or porcine by-products refined under controlled chemical or thermal problems.
The representative works via the amphiphilic nature of its peptide chains, which have both hydrophobic amino acid deposits (e.g., leucine, valine, phenylalanine) and hydrophilic moieties (e.g., lysine, aspartic acid, glutamic acid).
When introduced right into a liquid cementitious system and subjected to mechanical anxiety, these protein molecules move to the air-water interface, decreasing surface stress and supporting entrained air bubbles.
The hydrophobic sections orient towards the air stage while the hydrophilic areas stay in the aqueous matrix, creating a viscoelastic movie that stands up to coalescence and drain, therefore extending foam security.
Unlike artificial surfactants, TR– E gain from a complicated, polydisperse molecular structure that enhances interfacial elasticity and gives remarkable foam durability under variable pH and ionic strength problems normal of concrete slurries.
This natural healthy protein style allows for multi-point adsorption at user interfaces, developing a durable network that supports penalty, consistent bubble dispersion vital for lightweight concrete applications.
1.2 Foam Generation and Microstructural Control
The efficiency of TR– E depends on its capacity to create a high quantity of secure, micro-sized air voids (typically 10– 200 µm in diameter) with narrow dimension distribution when integrated right into concrete, plaster, or geopolymer systems.
During blending, the frothing representative is presented with water, and high-shear mixing or air-entraining tools introduces air, which is after that supported by the adsorbed protein layer.
The resulting foam structure significantly lowers the density of the last composite, making it possible for the manufacturing of lightweight materials with densities ranging from 300 to 1200 kg/m ³, depending on foam volume and matrix make-up.

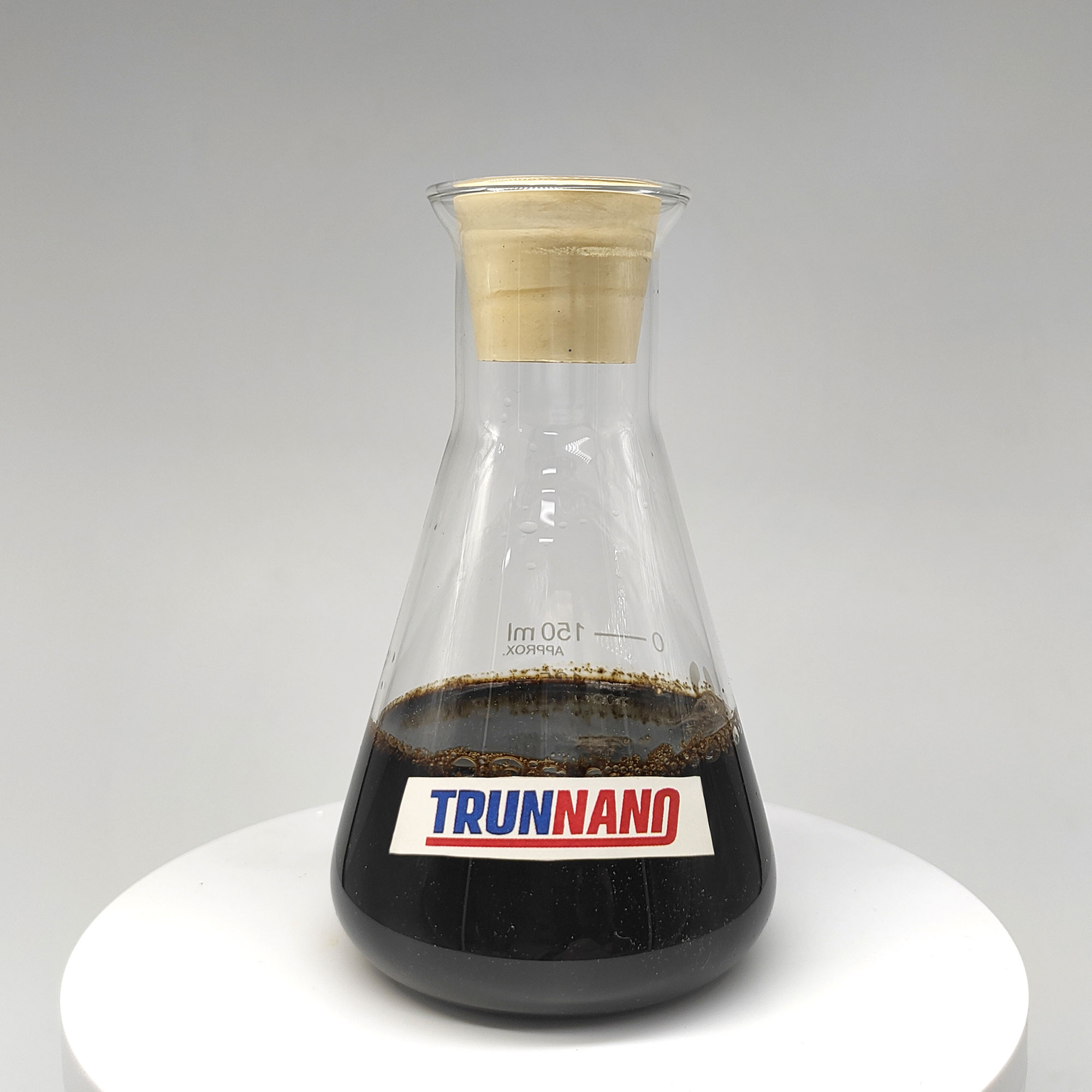

( TR–E Animal Protein Frothing Agent)
Most importantly, the uniformity and security of the bubbles imparted by TR– E reduce segregation and bleeding in fresh mixes, boosting workability and homogeneity.
The closed-cell nature of the stabilized foam additionally boosts thermal insulation and freeze-thaw resistance in hardened products, as isolated air gaps interfere with warmth transfer and fit ice growth without fracturing.
In addition, the protein-based movie shows thixotropic actions, maintaining foam honesty throughout pumping, casting, and curing without extreme collapse or coarsening.
2. Production Refine and Quality Assurance
2.1 Resources Sourcing and Hydrolysis
The production of TR– E starts with the selection of high-purity pet spin-offs, such as hide trimmings, bones, or plumes, which undertake extensive cleaning and defatting to eliminate natural contaminants and microbial tons.
These raw materials are after that subjected to controlled hydrolysis– either acid, alkaline, or enzymatic– to break down the complicated tertiary and quaternary structures of collagen or keratin into soluble polypeptides while protecting functional amino acid sequences.
Chemical hydrolysis is favored for its uniqueness and light problems, minimizing denaturation and preserving the amphiphilic balance important for lathering efficiency.
( Foam concrete)
The hydrolysate is filteringed system to get rid of insoluble residues, concentrated by means of evaporation, and standard to a consistent solids material (typically 20– 40%).
Trace metal web content, particularly alkali and hefty steels, is checked to make sure compatibility with concrete hydration and to prevent early setting or efflorescence.
2.2 Formulation and Efficiency Screening
Last TR– E formulas might include stabilizers (e.g., glycerol), pH barriers (e.g., sodium bicarbonate), and biocides to prevent microbial deterioration throughout storage space.
The product is typically supplied as a thick fluid concentrate, requiring dilution prior to usage in foam generation systems.
Quality assurance entails standardized examinations such as foam growth ratio (FER), specified as the quantity of foam generated per unit volume of concentrate, and foam stability index (FSI), gauged by the price of liquid drainage or bubble collapse in time.
Efficiency is additionally evaluated in mortar or concrete trials, analyzing specifications such as fresh density, air content, flowability, and compressive stamina advancement.
Batch uniformity is ensured via spectroscopic analysis (e.g., FTIR, UV-Vis) and electrophoretic profiling to validate molecular integrity and reproducibility of lathering behavior.
3. Applications in Building and Product Scientific Research
3.1 Lightweight Concrete and Precast Components
TR– E is commonly utilized in the manufacture of autoclaved oxygenated concrete (AAC), foam concrete, and light-weight precast panels, where its reliable foaming action allows accurate control over thickness and thermal buildings.
In AAC production, TR– E-generated foam is blended with quartz sand, cement, lime, and aluminum powder, after that treated under high-pressure vapor, leading to a cellular structure with superb insulation and fire resistance.
Foam concrete for floor screeds, roof covering insulation, and void filling up benefits from the simplicity of pumping and placement allowed by TR– E’s secure foam, minimizing architectural lots and material intake.
The agent’s compatibility with various binders, including Portland concrete, blended cements, and alkali-activated systems, expands its applicability across lasting construction technologies.
Its capacity to maintain foam stability during expanded placement times is particularly beneficial in large-scale or remote building tasks.
3.2 Specialized and Arising Makes Use Of
Past traditional construction, TR– E finds usage in geotechnical applications such as lightweight backfill for bridge joints and passage linings, where decreased side earth stress protects against architectural overloading.
In fireproofing sprays and intumescent coatings, the protein-stabilized foam adds to char development and thermal insulation during fire exposure, enhancing easy fire security.
Study is discovering its duty in 3D-printed concrete, where regulated rheology and bubble stability are essential for layer adhesion and shape retention.
Additionally, TR– E is being adjusted for use in soil stablizing and mine backfill, where lightweight, self-hardening slurries enhance safety and security and lower ecological impact.
Its biodegradability and low toxicity compared to artificial lathering agents make it a desirable option in eco-conscious building and construction techniques.
4. Environmental and Efficiency Advantages
4.1 Sustainability and Life-Cycle Impact
TR– E represents a valorization path for pet handling waste, transforming low-value by-products right into high-performance construction additives, therefore supporting circular economic climate concepts.
The biodegradability of protein-based surfactants lowers long-term ecological determination, and their reduced water toxicity reduces environmental risks throughout manufacturing and disposal.
When included into structure materials, TR– E contributes to energy performance by making it possible for lightweight, well-insulated structures that reduce heating and cooling needs over the structure’s life process.
Compared to petrochemical-derived surfactants, TR– E has a lower carbon footprint, specifically when produced making use of energy-efficient hydrolysis and waste-heat recuperation systems.
4.2 Performance in Harsh Issues
One of the key benefits of TR– E is its stability in high-alkalinity atmospheres (pH > 12), common of concrete pore services, where lots of protein-based systems would certainly denature or lose performance.
The hydrolyzed peptides in TR– E are chosen or customized to resist alkaline deterioration, making certain constant foaming performance throughout the setting and healing stages.
It also does reliably across a variety of temperature levels (5– 40 ° C), making it appropriate for use in diverse weather problems without requiring warmed storage space or additives.
The resulting foam concrete shows enhanced longevity, with lowered water absorption and boosted resistance to freeze-thaw biking due to optimized air void structure.
In conclusion, TR– E Animal Healthy protein Frothing Representative exhibits the combination of bio-based chemistry with advanced construction products, using a lasting, high-performance service for lightweight and energy-efficient building systems.
Its continued advancement sustains the change towards greener facilities with minimized ecological influence and improved practical performance.
