1. The Science and Framework of Alumina Ceramic Materials
1.1 Crystallography and Compositional Versions of Light Weight Aluminum Oxide

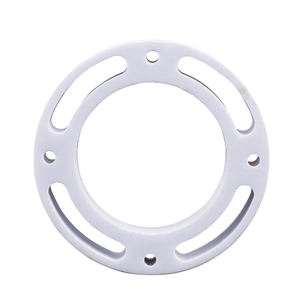

(Alumina Ceramics Rings)
Alumina ceramic rings are produced from light weight aluminum oxide (Al two O FIVE), a compound renowned for its outstanding balance of mechanical stamina, thermal stability, and electric insulation.
The most thermodynamically secure and industrially relevant stage of alumina is the alpha (α) stage, which takes shape in a hexagonal close-packed (HCP) structure belonging to the diamond family members.
In this setup, oxygen ions create a dense lattice with aluminum ions inhabiting two-thirds of the octahedral interstitial sites, resulting in an extremely stable and robust atomic structure.
While pure alumina is in theory 100% Al ₂ O FOUR, industrial-grade products usually include little percentages of ingredients such as silica (SiO ₂), magnesia (MgO), or yttria (Y ₂ O TWO) to control grain growth throughout sintering and enhance densification.
Alumina porcelains are identified by purity degrees: 96%, 99%, and 99.8% Al ₂ O six are common, with greater pureness correlating to improved mechanical residential or commercial properties, thermal conductivity, and chemical resistance.
The microstructure– particularly grain dimension, porosity, and stage circulation– plays a vital role in establishing the last efficiency of alumina rings in solution atmospheres.
1.2 Trick Physical and Mechanical Quality
Alumina ceramic rings display a suite of residential properties that make them crucial sought after industrial settings.
They have high compressive toughness (as much as 3000 MPa), flexural strength (normally 350– 500 MPa), and outstanding hardness (1500– 2000 HV), making it possible for resistance to put on, abrasion, and contortion under load.
Their low coefficient of thermal growth (roughly 7– 8 × 10 ⁻⁶/ K) guarantees dimensional stability across broad temperature varieties, decreasing thermal tension and fracturing during thermal cycling.
Thermal conductivity varieties from 20 to 30 W/m · K, relying on pureness, enabling modest warmth dissipation– sufficient for lots of high-temperature applications without the requirement for active air conditioning.

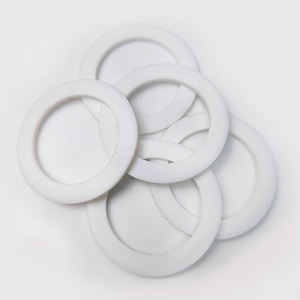

( Alumina Ceramics Ring)
Electrically, alumina is an exceptional insulator with a volume resistivity exceeding 10 ¹⁴ Ω · cm and a dielectric toughness of around 10– 15 kV/mm, making it ideal for high-voltage insulation elements.
In addition, alumina shows outstanding resistance to chemical strike from acids, antacid, and molten metals, although it is at risk to strike by solid alkalis and hydrofluoric acid at elevated temperatures.
2. Manufacturing and Accuracy Engineering of Alumina Bands
2.1 Powder Handling and Shaping Strategies
The manufacturing of high-performance alumina ceramic rings starts with the option and preparation of high-purity alumina powder.
Powders are normally synthesized via calcination of light weight aluminum hydroxide or through advanced methods like sol-gel processing to attain great bit size and slim size circulation.
To develop the ring geometry, several shaping approaches are used, consisting of:
Uniaxial pushing: where powder is compacted in a die under high pressure to form a “eco-friendly” ring.
Isostatic pushing: using consistent stress from all directions using a fluid tool, resulting in higher density and more uniform microstructure, particularly for facility or big rings.
Extrusion: appropriate for lengthy cylindrical types that are later reduced into rings, commonly made use of for lower-precision applications.
Injection molding: utilized for complex geometries and tight resistances, where alumina powder is mixed with a polymer binder and injected into a mold and mildew.
Each method affects the final density, grain alignment, and problem circulation, demanding cautious process choice based on application requirements.
2.2 Sintering and Microstructural Development
After shaping, the environment-friendly rings undertake high-temperature sintering, normally between 1500 ° C and 1700 ° C in air or regulated atmospheres.
Throughout sintering, diffusion devices drive bit coalescence, pore removal, and grain development, resulting in a totally thick ceramic body.
The rate of heating, holding time, and cooling profile are exactly managed to prevent cracking, bending, or exaggerated grain growth.
Additives such as MgO are commonly introduced to hinder grain border flexibility, causing a fine-grained microstructure that improves mechanical stamina and reliability.
Post-sintering, alumina rings may undertake grinding and lapping to accomplish tight dimensional tolerances ( ± 0.01 mm) and ultra-smooth surface finishes (Ra < 0.1 µm), vital for sealing, birthing, and electric insulation applications.
3. Practical Efficiency and Industrial Applications
3.1 Mechanical and Tribological Applications
Alumina ceramic rings are widely used in mechanical systems as a result of their wear resistance and dimensional security.
Trick applications consist of:
Sealing rings in pumps and shutoffs, where they resist erosion from abrasive slurries and destructive liquids in chemical processing and oil & gas industries.
Birthing parts in high-speed or harsh settings where metal bearings would weaken or call for constant lubrication.
Overview rings and bushings in automation tools, offering reduced friction and long life span without the demand for oiling.
Wear rings in compressors and generators, minimizing clearance in between rotating and stationary parts under high-pressure problems.
Their capability to keep efficiency in dry or chemically aggressive atmospheres makes them above many metallic and polymer alternatives.
3.2 Thermal and Electrical Insulation Roles
In high-temperature and high-voltage systems, alumina rings serve as crucial shielding parts.
They are employed as:
Insulators in heating elements and heater elements, where they support resisting cables while standing up to temperatures over 1400 ° C.
Feedthrough insulators in vacuum cleaner and plasma systems, preventing electric arcing while preserving hermetic seals.
Spacers and support rings in power electronics and switchgear, separating conductive parts in transformers, breaker, and busbar systems.
Dielectric rings in RF and microwave tools, where their low dielectric loss and high break down stamina ensure signal stability.
The mix of high dielectric stamina and thermal security allows alumina rings to function dependably in settings where natural insulators would break down.
4. Material Developments and Future Overview
4.1 Compound and Doped Alumina Systems
To better improve performance, scientists and makers are developing innovative alumina-based compounds.
Instances consist of:
Alumina-zirconia (Al ₂ O SIX-ZrO TWO) compounds, which display enhanced fracture durability with change toughening devices.
Alumina-silicon carbide (Al ₂ O TWO-SiC) nanocomposites, where nano-sized SiC particles enhance hardness, thermal shock resistance, and creep resistance.
Rare-earth-doped alumina, which can customize grain border chemistry to enhance high-temperature toughness and oxidation resistance.
These hybrid products prolong the functional envelope of alumina rings right into more extreme conditions, such as high-stress vibrant loading or rapid thermal biking.
4.2 Emerging Trends and Technical Combination
The future of alumina ceramic rings depends on clever assimilation and precision manufacturing.
Fads include:
Additive manufacturing (3D printing) of alumina parts, allowing complex inner geometries and tailored ring layouts previously unreachable via typical techniques.
Functional grading, where composition or microstructure varies across the ring to optimize performance in different areas (e.g., wear-resistant outer layer with thermally conductive core).
In-situ surveillance through ingrained sensing units in ceramic rings for anticipating maintenance in commercial equipment.
Boosted use in renewable energy systems, such as high-temperature gas cells and focused solar power plants, where material dependability under thermal and chemical tension is vital.
As sectors demand greater efficiency, longer lifespans, and minimized maintenance, alumina ceramic rings will remain to play a crucial role in making it possible for next-generation engineering services.
