1. Product Fundamentals and Crystal Chemistry
1.1 Composition and Polymorphic Structure

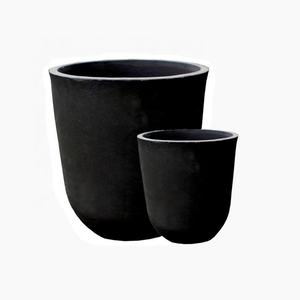

(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalent ceramic substance composed of silicon and carbon atoms in a 1:1 stoichiometric proportion, renowned for its extraordinary solidity, thermal conductivity, and chemical inertness.
It exists in over 250 polytypes– crystal structures differing in stacking series– amongst which 3C-SiC (cubic), 4H-SiC, and 6H-SiC (hexagonal) are one of the most technologically appropriate.
The strong directional covalent bonds (Si– C bond power ~ 318 kJ/mol) cause a high melting point (~ 2700 Ā° C), low thermal development (~ 4.0 Ć 10 ā»ā¶/ K), and superb resistance to thermal shock.
Unlike oxide ceramics such as alumina, SiC does not have a native glassy stage, adding to its stability in oxidizing and destructive ambiences up to 1600 Ā° C.
Its large bandgap (2.3– 3.3 eV, relying on polytype) additionally grants it with semiconductor residential or commercial properties, enabling double usage in architectural and electronic applications.
1.2 Sintering Obstacles and Densification Techniques
Pure SiC is exceptionally hard to densify due to its covalent bonding and low self-diffusion coefficients, necessitating the use of sintering aids or sophisticated processing techniques.
Reaction-bonded SiC (RB-SiC) is produced by infiltrating porous carbon preforms with liquified silicon, forming SiC in situ; this method yields near-net-shape elements with residual silicon (5– 20%).
Solid-state sintered SiC (SSiC) uses boron and carbon ingredients to promote densification at ~ 2000– 2200 Ā° C under inert environment, achieving > 99% academic density and superior mechanical residential properties.
Liquid-phase sintered SiC (LPS-SiC) employs oxide ingredients such as Al ā O SIX– Y TWO O ā, forming a transient fluid that boosts diffusion yet might minimize high-temperature stamina due to grain-boundary stages.
Hot pushing and stimulate plasma sintering (SPS) supply quick, pressure-assisted densification with fine microstructures, suitable for high-performance parts needing minimal grain development.
2. Mechanical and Thermal Efficiency Characteristics
2.1 Stamina, Hardness, and Use Resistance
Silicon carbide porcelains display Vickers firmness worths of 25– 30 Grade point average, 2nd only to ruby and cubic boron nitride amongst design materials.
Their flexural strength generally ranges from 300 to 600 MPa, with crack toughness (K_IC) of 3– 5 MPa Ā· m Ā¹/ Ā²– moderate for ceramics however enhanced through microstructural engineering such as whisker or fiber support.
The mix of high hardness and elastic modulus (~ 410 Grade point average) makes SiC incredibly resistant to unpleasant and abrasive wear, outshining tungsten carbide and solidified steel in slurry and particle-laden environments.
( Silicon Carbide Ceramics)
In commercial applications such as pump seals, nozzles, and grinding media, SiC components show service lives a number of times longer than traditional options.
Its low density (~ 3.1 g/cm Ā³) additional contributes to wear resistance by lowering inertial forces in high-speed rotating components.
2.2 Thermal Conductivity and Stability
Among SiC’s most distinct functions is its high thermal conductivity– varying from 80 to 120 W/(m Ā· K )for polycrystalline forms, and as much as 490 W/(m Ā· K) for single-crystal 4H-SiC– going beyond most steels other than copper and aluminum.
This residential or commercial property enables reliable warm dissipation in high-power electronic substratums, brake discs, and heat exchanger elements.
Coupled with reduced thermal development, SiC shows outstanding thermal shock resistance, measured by the R-parameter (Ļ(1– Ī½)k/ Ī±E), where high values indicate strength to fast temperature level modifications.
For instance, SiC crucibles can be warmed from room temperature level to 1400 Ā° C in mins without breaking, a task unattainable for alumina or zirconia in similar conditions.
Additionally, SiC preserves stamina approximately 1400 Ā° C in inert ambiences, making it perfect for heating system components, kiln furnishings, and aerospace parts revealed to severe thermal cycles.
3. Chemical Inertness and Rust Resistance
3.1 Behavior in Oxidizing and Lowering Atmospheres
At temperature levels listed below 800 Ā° C, SiC is extremely steady in both oxidizing and minimizing settings.
Over 800 Ā° C in air, a safety silica (SiO ā) layer types on the surface through oxidation (SiC + 3/2 O ā ā SiO ā + CARBON MONOXIDE), which passivates the material and slows down further degradation.
Nonetheless, in water vapor-rich or high-velocity gas streams above 1200 Ā° C, this silica layer can volatilize as Si(OH)FOUR, bring about increased economic crisis– an essential factor to consider in wind turbine and combustion applications.
In reducing ambiences or inert gases, SiC continues to be secure approximately its decay temperature (~ 2700 Ā° C), without phase adjustments or stamina loss.
This stability makes it ideal for liquified steel handling, such as light weight aluminum or zinc crucibles, where it withstands moistening and chemical attack far better than graphite or oxides.
3.2 Resistance to Acids, Alkalis, and Molten Salts
Silicon carbide is basically inert to all acids except hydrofluoric acid (HF) and solid oxidizing acid mixtures (e.g., HF– HNO SIX).
It reveals exceptional resistance to alkalis approximately 800 Ā° C, though prolonged direct exposure to thaw NaOH or KOH can cause surface area etching via development of soluble silicates.
In molten salt settings– such as those in concentrated solar energy (CSP) or nuclear reactors– SiC shows exceptional rust resistance contrasted to nickel-based superalloys.
This chemical toughness underpins its use in chemical procedure tools, including valves, linings, and warmth exchanger tubes managing aggressive media like chlorine, sulfuric acid, or seawater.
4. Industrial Applications and Arising Frontiers
4.1 Established Utilizes in Energy, Protection, and Production
Silicon carbide ceramics are indispensable to countless high-value commercial systems.
In the power market, they function as wear-resistant linings in coal gasifiers, parts in nuclear fuel cladding (SiC/SiC compounds), and substratums for high-temperature solid oxide fuel cells (SOFCs).
Defense applications include ballistic shield plates, where SiC’s high hardness-to-density proportion offers remarkable protection versus high-velocity projectiles compared to alumina or boron carbide at lower expense.
In manufacturing, SiC is utilized for accuracy bearings, semiconductor wafer handling parts, and rough blowing up nozzles because of its dimensional stability and purity.
Its usage in electric lorry (EV) inverters as a semiconductor substrate is rapidly growing, driven by effectiveness gains from wide-bandgap electronic devices.
4.2 Next-Generation Dopes and Sustainability
Recurring research study focuses on SiC fiber-reinforced SiC matrix compounds (SiC/SiC), which display pseudo-ductile behavior, boosted strength, and preserved strength over 1200 Ā° C– excellent for jet engines and hypersonic automobile leading sides.
Additive manufacturing of SiC via binder jetting or stereolithography is progressing, allowing intricate geometries formerly unattainable with standard creating methods.
From a sustainability perspective, SiC’s longevity lowers replacement regularity and lifecycle exhausts in industrial systems.
Recycling of SiC scrap from wafer slicing or grinding is being developed with thermal and chemical recuperation procedures to reclaim high-purity SiC powder.
As sectors push towards greater efficiency, electrification, and extreme-environment procedure, silicon carbide-based ceramics will certainly stay at the leading edge of sophisticated products engineering, connecting the space between structural durability and functional adaptability.
