1. Crystal Structure and Polytypism of Silicon Carbide
1.1 Cubic and Hexagonal Polytypes: From 3C to 6H and Past
(Silicon Carbide Ceramics)
Silicon carbide (SiC) is a covalently bonded ceramic made up of silicon and carbon atoms prepared in a tetrahedral sychronisation, developing among one of the most intricate systems of polytypism in materials science.
Unlike most ceramics with a single stable crystal structure, SiC exists in over 250 well-known polytypes– distinctive piling series of close-packed Si-C bilayers along the c-axis– varying from cubic 3C-SiC (likewise referred to as β-SiC) to hexagonal 6H-SiC and rhombohedral 15R-SiC.
One of the most typical polytypes used in engineering applications are 3C (cubic), 4H, and 6H (both hexagonal), each exhibiting somewhat various digital band frameworks and thermal conductivities.
3C-SiC, with its zinc blende structure, has the narrowest bandgap (~ 2.3 eV) and is typically grown on silicon substrates for semiconductor gadgets, while 4H-SiC supplies premium electron wheelchair and is preferred for high-power electronic devices.
The strong covalent bonding and directional nature of the Si– C bond confer exceptional solidity, thermal stability, and resistance to sneak and chemical attack, making SiC ideal for severe setting applications.
1.2 Flaws, Doping, and Digital Properties
In spite of its architectural intricacy, SiC can be doped to accomplish both n-type and p-type conductivity, enabling its use in semiconductor devices.
Nitrogen and phosphorus work as benefactor contaminations, introducing electrons into the transmission band, while light weight aluminum and boron function as acceptors, creating holes in the valence band.
However, p-type doping performance is limited by high activation energies, especially in 4H-SiC, which poses obstacles for bipolar tool style.
Native problems such as screw misplacements, micropipes, and piling mistakes can degrade device efficiency by acting as recombination centers or leakage paths, requiring top notch single-crystal development for digital applications.
The broad bandgap (2.3– 3.3 eV depending on polytype), high malfunction electrical area (~ 3 MV/cm), and superb thermal conductivity (~ 3– 4 W/m · K for 4H-SiC) make SiC far above silicon in high-temperature, high-voltage, and high-frequency power electronic devices.
2. Handling and Microstructural Engineering

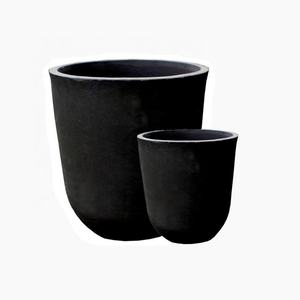

( Silicon Carbide Ceramics)
2.1 Sintering and Densification Techniques
Silicon carbide is inherently tough to densify as a result of its solid covalent bonding and low self-diffusion coefficients, requiring innovative handling techniques to accomplish full thickness without ingredients or with very little sintering aids.
Pressureless sintering of submicron SiC powders is possible with the addition of boron and carbon, which promote densification by eliminating oxide layers and improving solid-state diffusion.
Warm pressing applies uniaxial pressure during home heating, enabling full densification at lower temperature levels (~ 1800– 2000 ° C )and generating fine-grained, high-strength elements ideal for cutting devices and wear components.
For huge or complicated forms, response bonding is employed, where porous carbon preforms are infiltrated with molten silicon at ~ 1600 ° C, developing β-SiC sitting with minimal shrinkage.
Nonetheless, residual free silicon (~ 5– 10%) stays in the microstructure, restricting high-temperature efficiency and oxidation resistance over 1300 ° C.
2.2 Additive Production and Near-Net-Shape Construction
Current advancements in additive production (AM), particularly binder jetting and stereolithography using SiC powders or preceramic polymers, allow the construction of complicated geometries previously unattainable with traditional methods.
In polymer-derived ceramic (PDC) routes, fluid SiC precursors are formed via 3D printing and afterwards pyrolyzed at high temperatures to yield amorphous or nanocrystalline SiC, usually needing additional densification.
These strategies decrease machining expenses and material waste, making SiC extra accessible for aerospace, nuclear, and warm exchanger applications where detailed styles boost performance.
Post-processing steps such as chemical vapor seepage (CVI) or fluid silicon seepage (LSI) are in some cases utilized to improve thickness and mechanical integrity.
3. Mechanical, Thermal, and Environmental Performance
3.1 Toughness, Firmness, and Put On Resistance
Silicon carbide places amongst the hardest recognized products, with a Mohs firmness of ~ 9.5 and Vickers solidity going beyond 25 Grade point average, making it extremely immune to abrasion, erosion, and scratching.
Its flexural toughness generally varies from 300 to 600 MPa, depending upon handling method and grain dimension, and it preserves strength at temperature levels approximately 1400 ° C in inert ambiences.
Crack durability, while modest (~ 3– 4 MPa · m 1ST/ TWO), suffices for numerous structural applications, especially when incorporated with fiber reinforcement in ceramic matrix compounds (CMCs).
SiC-based CMCs are made use of in wind turbine blades, combustor liners, and brake systems, where they supply weight cost savings, gas performance, and extended service life over metal counterparts.
Its excellent wear resistance makes SiC suitable for seals, bearings, pump components, and ballistic armor, where sturdiness under severe mechanical loading is essential.
3.2 Thermal Conductivity and Oxidation Stability
Among SiC’s most useful residential properties is its high thermal conductivity– up to 490 W/m · K for single-crystal 4H-SiC and ~ 30– 120 W/m · K for polycrystalline types– surpassing that of several metals and allowing effective warm dissipation.
This home is crucial in power electronics, where SiC devices produce much less waste warmth and can run at greater power thickness than silicon-based tools.
At elevated temperatures in oxidizing settings, SiC develops a safety silica (SiO ₂) layer that reduces further oxidation, giving good ecological toughness approximately ~ 1600 ° C.
However, in water vapor-rich settings, this layer can volatilize as Si(OH)FOUR, bring about accelerated destruction– an essential obstacle in gas generator applications.
4. Advanced Applications in Power, Electronics, and Aerospace
4.1 Power Electronic Devices and Semiconductor Gadgets
Silicon carbide has transformed power electronics by allowing tools such as Schottky diodes, MOSFETs, and JFETs that operate at higher voltages, frequencies, and temperature levels than silicon matchings.
These gadgets minimize power losses in electric cars, renewable resource inverters, and industrial electric motor drives, adding to worldwide power efficiency renovations.
The capacity to operate at joint temperature levels above 200 ° C permits simplified cooling systems and boosted system reliability.
Moreover, SiC wafers are made use of as substratums for gallium nitride (GaN) epitaxy in high-electron-mobility transistors (HEMTs), combining the advantages of both wide-bandgap semiconductors.
4.2 Nuclear, Aerospace, and Optical Systems
In atomic power plants, SiC is a crucial part of accident-tolerant fuel cladding, where its reduced neutron absorption cross-section, radiation resistance, and high-temperature toughness improve safety and performance.
In aerospace, SiC fiber-reinforced compounds are utilized in jet engines and hypersonic cars for their lightweight and thermal stability.
Additionally, ultra-smooth SiC mirrors are used precede telescopes as a result of their high stiffness-to-density ratio, thermal stability, and polishability to sub-nanometer roughness.
In recap, silicon carbide ceramics represent a keystone of modern-day sophisticated products, integrating extraordinary mechanical, thermal, and electronic residential properties.
Via specific control of polytype, microstructure, and handling, SiC remains to allow technological developments in energy, transport, and severe environment engineering.
