1. Structure and Architectural Features of Fused Quartz
1.1 Amorphous Network and Thermal Stability

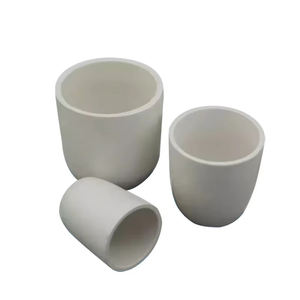

(Quartz Crucibles)
Quartz crucibles are high-temperature containers manufactured from merged silica, an artificial type of silicon dioxide (SiO TWO) derived from the melting of natural quartz crystals at temperatures surpassing 1700 ° C.
Unlike crystalline quartz, integrated silica has an amorphous three-dimensional network of corner-sharing SiO four tetrahedra, which imparts outstanding thermal shock resistance and dimensional stability under quick temperature level modifications.
This disordered atomic framework prevents bosom along crystallographic aircrafts, making fused silica much less prone to cracking during thermal cycling compared to polycrystalline ceramics.
The material exhibits a reduced coefficient of thermal expansion (~ 0.5 × 10 ⁻⁶/ K), among the lowest among design materials, enabling it to stand up to extreme thermal slopes without fracturing– an essential property in semiconductor and solar battery manufacturing.
Fused silica likewise keeps exceptional chemical inertness against most acids, liquified metals, and slags, although it can be gradually etched by hydrofluoric acid and hot phosphoric acid.
Its high softening factor (~ 1600– 1730 ° C, relying on purity and OH material) allows sustained operation at elevated temperatures needed for crystal growth and metal refining processes.
1.2 Purity Grading and Trace Element Control
The performance of quartz crucibles is highly dependent on chemical pureness, specifically the concentration of metal pollutants such as iron, salt, potassium, light weight aluminum, and titanium.
Even trace quantities (components per million degree) of these impurities can move right into liquified silicon throughout crystal development, degrading the electrical residential or commercial properties of the resulting semiconductor material.
High-purity qualities used in electronics producing typically include over 99.95% SiO ₂, with alkali steel oxides restricted to less than 10 ppm and change steels listed below 1 ppm.
Contaminations originate from raw quartz feedstock or handling devices and are minimized with cautious selection of mineral resources and purification strategies like acid leaching and flotation.
Furthermore, the hydroxyl (OH) material in merged silica impacts its thermomechanical actions; high-OH types offer far better UV transmission but lower thermal stability, while low-OH variations are favored for high-temperature applications due to decreased bubble formation.

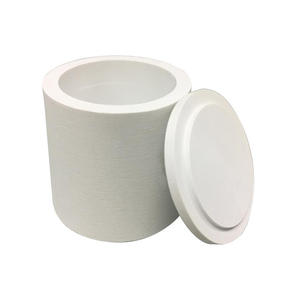

( Quartz Crucibles)
2. Manufacturing Process and Microstructural Design
2.1 Electrofusion and Developing Strategies
Quartz crucibles are mainly created via electrofusion, a procedure in which high-purity quartz powder is fed right into a rotating graphite mold within an electric arc furnace.
An electric arc created between carbon electrodes melts the quartz fragments, which solidify layer by layer to develop a seamless, dense crucible shape.
This technique produces a fine-grained, homogeneous microstructure with marginal bubbles and striae, essential for uniform warmth circulation and mechanical honesty.
Different approaches such as plasma combination and flame fusion are utilized for specialized applications requiring ultra-low contamination or details wall thickness profiles.
After casting, the crucibles undergo controlled cooling (annealing) to relieve interior stresses and prevent spontaneous fracturing throughout service.
Surface area completing, including grinding and polishing, makes sure dimensional accuracy and minimizes nucleation sites for undesirable crystallization throughout usage.
2.2 Crystalline Layer Design and Opacity Control
A defining feature of contemporary quartz crucibles, specifically those utilized in directional solidification of multicrystalline silicon, is the crafted internal layer structure.
Throughout production, the internal surface is typically treated to promote the formation of a slim, controlled layer of cristobalite– a high-temperature polymorph of SiO ₂– upon first home heating.
This cristobalite layer serves as a diffusion obstacle, minimizing direct communication in between liquified silicon and the underlying fused silica, therefore lessening oxygen and metal contamination.
Additionally, the existence of this crystalline stage enhances opacity, boosting infrared radiation absorption and advertising more uniform temperature level distribution within the thaw.
Crucible designers thoroughly balance the thickness and connection of this layer to avoid spalling or fracturing because of volume modifications during phase shifts.
3. Practical Performance in High-Temperature Applications
3.1 Duty in Silicon Crystal Development Processes
Quartz crucibles are vital in the manufacturing of monocrystalline and multicrystalline silicon, working as the primary container for liquified silicon in Czochralski (CZ) and directional solidification systems (DS).
In the CZ process, a seed crystal is dipped right into molten silicon kept in a quartz crucible and gradually pulled up while rotating, enabling single-crystal ingots to form.
Although the crucible does not directly speak to the expanding crystal, interactions between liquified silicon and SiO two walls cause oxygen dissolution right into the melt, which can impact service provider life time and mechanical strength in ended up wafers.
In DS processes for photovoltaic-grade silicon, large-scale quartz crucibles enable the controlled air conditioning of hundreds of kilograms of molten silicon into block-shaped ingots.
Here, layers such as silicon nitride (Si three N FOUR) are put on the internal surface to avoid attachment and assist in very easy release of the solidified silicon block after cooling down.
3.2 Destruction Devices and Life Span Limitations
Regardless of their effectiveness, quartz crucibles degrade throughout duplicated high-temperature cycles as a result of numerous related devices.
Thick circulation or deformation takes place at prolonged direct exposure over 1400 ° C, bring about wall thinning and loss of geometric integrity.
Re-crystallization of merged silica into cristobalite generates interior anxieties as a result of volume development, possibly creating fractures or spallation that contaminate the thaw.
Chemical disintegration arises from decrease reactions in between liquified silicon and SiO ₂: SiO ₂ + Si → 2SiO(g), generating unstable silicon monoxide that gets away and compromises the crucible wall.
Bubble formation, driven by caught gases or OH groups, even more compromises structural stamina and thermal conductivity.
These deterioration pathways restrict the number of reuse cycles and require specific procedure control to make best use of crucible lifespan and product return.
4. Arising Developments and Technical Adaptations
4.1 Coatings and Composite Modifications
To boost performance and toughness, progressed quartz crucibles integrate practical finishes and composite structures.
Silicon-based anti-sticking layers and drugged silica finishes enhance release features and reduce oxygen outgassing during melting.
Some suppliers integrate zirconia (ZrO ₂) fragments right into the crucible wall to enhance mechanical stamina and resistance to devitrification.
Research is recurring into completely clear or gradient-structured crucibles made to enhance induction heat transfer in next-generation solar heater layouts.
4.2 Sustainability and Recycling Challenges
With raising need from the semiconductor and photovoltaic or pv sectors, lasting use quartz crucibles has ended up being a concern.
Used crucibles contaminated with silicon residue are challenging to recycle as a result of cross-contamination dangers, bring about substantial waste generation.
Initiatives concentrate on developing recyclable crucible liners, enhanced cleaning protocols, and closed-loop recycling systems to recoup high-purity silica for second applications.
As tool performances require ever-higher material purity, the role of quartz crucibles will certainly continue to develop via development in materials science and procedure engineering.
In summary, quartz crucibles represent an important user interface between resources and high-performance electronic products.
Their special combination of purity, thermal resilience, and architectural design makes it possible for the fabrication of silicon-based innovations that power modern-day computing and renewable energy systems.
