1. Basic Make-up and Structural Features of Quartz Ceramics
1.1 Chemical Purity and Crystalline-to-Amorphous Shift

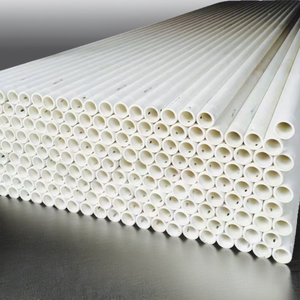

(Quartz Ceramics)
Quartz ceramics, additionally referred to as integrated silica or integrated quartz, are a class of high-performance inorganic materials originated from silicon dioxide (SiO TWO) in its ultra-pure, non-crystalline (amorphous) kind.
Unlike traditional porcelains that depend on polycrystalline frameworks, quartz ceramics are distinguished by their total absence of grain boundaries due to their lustrous, isotropic network of SiO four tetrahedra interconnected in a three-dimensional random network.
This amorphous framework is attained with high-temperature melting of natural quartz crystals or artificial silica forerunners, followed by fast cooling to stop formation.
The resulting product contains typically over 99.9% SiO TWO, with trace contaminations such as alkali metals (Na ⁺, K ⁺), aluminum, and iron kept at parts-per-million degrees to preserve optical clearness, electric resistivity, and thermal efficiency.
The absence of long-range order removes anisotropic habits, making quartz ceramics dimensionally stable and mechanically uniform in all instructions– a crucial benefit in precision applications.
1.2 Thermal Actions and Resistance to Thermal Shock
One of one of the most specifying functions of quartz porcelains is their incredibly low coefficient of thermal development (CTE), typically around 0.55 × 10 ⁻⁶/ K between 20 ° C and 300 ° C.
This near-zero growth arises from the flexible Si– O– Si bond angles in the amorphous network, which can change under thermal stress and anxiety without breaking, allowing the material to stand up to rapid temperature adjustments that would fracture conventional porcelains or steels.
Quartz porcelains can endure thermal shocks going beyond 1000 ° C, such as direct immersion in water after warming to red-hot temperatures, without splitting or spalling.
This residential or commercial property makes them important in settings involving repeated heating and cooling cycles, such as semiconductor handling heaters, aerospace parts, and high-intensity lights systems.
Additionally, quartz porcelains keep structural honesty approximately temperatures of roughly 1100 ° C in continuous service, with short-term direct exposure tolerance coming close to 1600 ° C in inert ambiences.

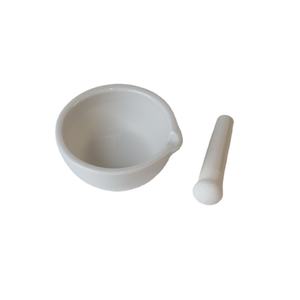

( Quartz Ceramics)
Beyond thermal shock resistance, they show high softening temperatures (~ 1600 ° C )and excellent resistance to devitrification– though prolonged exposure above 1200 ° C can initiate surface condensation into cristobalite, which may jeopardize mechanical toughness due to quantity adjustments throughout stage changes.
2. Optical, Electrical, and Chemical Characteristics of Fused Silica Equipment
2.1 Broadband Transparency and Photonic Applications
Quartz porcelains are renowned for their outstanding optical transmission across a wide spooky range, expanding from the deep ultraviolet (UV) at ~ 180 nm to the near-infrared (IR) at ~ 2500 nm.
This openness is made it possible for by the lack of contaminations and the homogeneity of the amorphous network, which lessens light spreading and absorption.
High-purity synthetic merged silica, produced via flame hydrolysis of silicon chlorides, accomplishes even better UV transmission and is utilized in important applications such as excimer laser optics, photolithography lenses, and space-based telescopes.
The material’s high laser damages threshold– standing up to break down under extreme pulsed laser irradiation– makes it ideal for high-energy laser systems utilized in blend research and commercial machining.
Additionally, its low autofluorescence and radiation resistance ensure integrity in clinical instrumentation, consisting of spectrometers, UV treating systems, and nuclear monitoring tools.
2.2 Dielectric Performance and Chemical Inertness
From an electric perspective, quartz ceramics are impressive insulators with quantity resistivity exceeding 10 ¹⁸ Ω · cm at space temperature and a dielectric constant of approximately 3.8 at 1 MHz.
Their low dielectric loss tangent (tan δ < 0.0001) makes sure marginal power dissipation in high-frequency and high-voltage applications, making them suitable for microwave home windows, radar domes, and shielding substrates in electronic assemblies.
These residential properties stay secure over a wide temperature range, unlike many polymers or standard porcelains that break down electrically under thermal stress.
Chemically, quartz ceramics show amazing inertness to many acids, including hydrochloric, nitric, and sulfuric acids, due to the stability of the Si– O bond.
However, they are prone to strike by hydrofluoric acid (HF) and solid antacids such as warm sodium hydroxide, which break the Si– O– Si network.
This selective sensitivity is manipulated in microfabrication processes where regulated etching of fused silica is needed.
In aggressive industrial environments– such as chemical handling, semiconductor wet benches, and high-purity fluid handling– quartz ceramics serve as liners, sight glasses, and reactor components where contamination should be minimized.
3. Manufacturing Processes and Geometric Design of Quartz Porcelain Components
3.1 Thawing and Creating Methods
The production of quartz porcelains includes several specialized melting approaches, each tailored to certain pureness and application requirements.
Electric arc melting uses high-purity quartz sand thawed in a water-cooled copper crucible under vacuum or inert gas, creating big boules or tubes with superb thermal and mechanical residential or commercial properties.
Flame blend, or burning synthesis, includes burning silicon tetrachloride (SiCl ₄) in a hydrogen-oxygen flame, depositing great silica bits that sinter into a clear preform– this method yields the highest possible optical quality and is used for artificial integrated silica.
Plasma melting provides a different route, giving ultra-high temperature levels and contamination-free processing for niche aerospace and protection applications.
When thawed, quartz porcelains can be shaped via precision casting, centrifugal creating (for tubes), or CNC machining of pre-sintered spaces.
As a result of their brittleness, machining requires diamond devices and careful control to prevent microcracking.
3.2 Precision Manufacture and Surface Completing
Quartz ceramic elements are typically fabricated into complicated geometries such as crucibles, tubes, poles, home windows, and custom insulators for semiconductor, solar, and laser sectors.
Dimensional precision is critical, particularly in semiconductor manufacturing where quartz susceptors and bell jars have to preserve specific alignment and thermal uniformity.
Surface ending up plays a crucial role in performance; polished surface areas decrease light spreading in optical components and reduce nucleation websites for devitrification in high-temperature applications.
Engraving with buffered HF remedies can create regulated surface area structures or eliminate harmed layers after machining.
For ultra-high vacuum (UHV) systems, quartz porcelains are cleaned and baked to eliminate surface-adsorbed gases, guaranteeing minimal outgassing and compatibility with delicate procedures like molecular beam of light epitaxy (MBE).
4. Industrial and Scientific Applications of Quartz Ceramics
4.1 Function in Semiconductor and Photovoltaic Production
Quartz ceramics are fundamental materials in the manufacture of integrated circuits and solar batteries, where they serve as heater tubes, wafer watercrafts (susceptors), and diffusion chambers.
Their capability to withstand heats in oxidizing, lowering, or inert environments– incorporated with reduced metal contamination– ensures procedure purity and yield.
During chemical vapor deposition (CVD) or thermal oxidation, quartz elements keep dimensional stability and withstand bending, protecting against wafer breakage and misalignment.
In solar manufacturing, quartz crucibles are made use of to expand monocrystalline silicon ingots by means of the Czochralski procedure, where their purity straight affects the electrical quality of the final solar batteries.
4.2 Usage in Illumination, Aerospace, and Analytical Instrumentation
In high-intensity discharge (HID) lights and UV sanitation systems, quartz ceramic envelopes contain plasma arcs at temperature levels exceeding 1000 ° C while transmitting UV and noticeable light effectively.
Their thermal shock resistance stops failure throughout rapid lamp ignition and shutdown cycles.
In aerospace, quartz ceramics are utilized in radar home windows, sensing unit housings, and thermal security systems as a result of their reduced dielectric continuous, high strength-to-density proportion, and stability under aerothermal loading.
In analytical chemistry and life sciences, fused silica capillaries are important in gas chromatography (GC) and capillary electrophoresis (CE), where surface inertness prevents sample adsorption and guarantees exact separation.
Additionally, quartz crystal microbalances (QCMs), which rely upon the piezoelectric buildings of crystalline quartz (distinct from integrated silica), use quartz porcelains as safety real estates and shielding supports in real-time mass noticing applications.
To conclude, quartz ceramics represent an unique intersection of severe thermal strength, optical transparency, and chemical pureness.
Their amorphous structure and high SiO ₂ content allow efficiency in environments where standard materials fail, from the heart of semiconductor fabs to the side of space.
As modern technology advancements towards higher temperature levels, greater accuracy, and cleaner processes, quartz porcelains will certainly remain to function as an important enabler of development across scientific research and market.
