1. Product Scientific Research and Structural Quality
1.1 Crystal Framework and Chemical Security

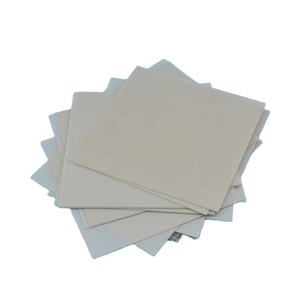

(Aluminum Nitride Ceramic Substrates)
Aluminum nitride (AlN) is a large bandgap semiconductor ceramic with a hexagonal wurtzite crystal framework, composed of rotating layers of light weight aluminum and nitrogen atoms bonded via solid covalent communications.
This durable atomic arrangement grants AlN with phenomenal thermal security, maintaining structural stability up to 2200 ° C in inert environments and standing up to disintegration under severe thermal cycling.
Unlike alumina (Al two O ₃), AlN is chemically inert to molten metals and numerous reactive gases, making it appropriate for rough environments such as semiconductor processing chambers and high-temperature heating systems.
Its high resistance to oxidation– creating just a slim protective Al ₂ O five layer at surface area upon direct exposure to air– makes certain long-lasting integrity without considerable degradation of mass homes.
In addition, AlN displays superb electric insulation with a resistivity going beyond 10 ¹⁴ Ω · centimeters and a dielectric strength over 30 kV/mm, vital for high-voltage applications.
1.2 Thermal Conductivity and Electronic Features
One of the most defining feature of light weight aluminum nitride is its superior thermal conductivity, typically ranging from 140 to 180 W/(m · K )for commercial-grade substratums– over five times greater than that of alumina (≈ 30 W/(m · K)).
This efficiency comes from the low atomic mass of nitrogen and aluminum, integrated with solid bonding and marginal point issues, which permit efficient phonon transport with the lattice.
Nonetheless, oxygen pollutants are particularly damaging; even trace amounts (over 100 ppm) replacement for nitrogen websites, producing aluminum jobs and spreading phonons, thereby dramatically lowering thermal conductivity.
High-purity AlN powders manufactured using carbothermal reduction or straight nitridation are important to accomplish ideal heat dissipation.
Despite being an electrical insulator, AlN’s piezoelectric and pyroelectric homes make it important in sensors and acoustic wave gadgets, while its broad bandgap (~ 6.2 eV) sustains operation in high-power and high-frequency electronic systems.
2. Manufacture Procedures and Production Obstacles
( Aluminum Nitride Ceramic Substrates)
2.1 Powder Synthesis and Sintering Methods
Making high-performance AlN substrates begins with the synthesis of ultra-fine, high-purity powder, frequently achieved via responses such as Al Two O TWO + 3C + N TWO → 2AlN + 3CO (carbothermal reduction) or direct nitridation of aluminum steel: 2Al + N ₂ → 2AlN.
The resulting powder must be carefully crushed and doped with sintering help like Y ₂ O TWO, CaO, or rare planet oxides to advertise densification at temperatures between 1700 ° C and 1900 ° C under nitrogen ambience.
These ingredients create transient fluid phases that improve grain border diffusion, allowing full densification (> 99% academic density) while decreasing oxygen contamination.
Post-sintering annealing in carbon-rich atmospheres can additionally decrease oxygen content by getting rid of intergranular oxides, therefore recovering peak thermal conductivity.
Accomplishing uniform microstructure with regulated grain dimension is essential to balance mechanical stamina, thermal efficiency, and manufacturability.
2.2 Substrate Forming and Metallization
As soon as sintered, AlN ceramics are precision-ground and washed to fulfill tight dimensional tolerances needed for electronic product packaging, commonly down to micrometer-level monotony.
Through-hole exploration, laser cutting, and surface area pattern make it possible for assimilation into multilayer bundles and hybrid circuits.
A critical action in substrate fabrication is metallization– the application of conductive layers (generally tungsten, molybdenum, or copper) using procedures such as thick-film printing, thin-film sputtering, or straight bonding of copper (DBC).
For DBC, copper foils are adhered to AlN surface areas at elevated temperatures in a regulated environment, developing a solid interface ideal for high-current applications.
Different techniques like active metal brazing (AMB) utilize titanium-containing solders to enhance bond and thermal exhaustion resistance, particularly under repeated power cycling.
Proper interfacial engineering makes sure reduced thermal resistance and high mechanical integrity in operating tools.
3. Performance Advantages in Electronic Systems
3.1 Thermal Management in Power Electronic Devices
AlN substrates master taking care of warm generated by high-power semiconductor gadgets such as IGBTs, MOSFETs, and RF amplifiers made use of in electrical automobiles, renewable resource inverters, and telecommunications framework.
Reliable heat extraction stops local hotspots, lowers thermal tension, and extends tool life time by mitigating electromigration and delamination risks.
Contrasted to standard Al two O three substrates, AlN allows smaller sized plan sizes and higher power densities because of its exceptional thermal conductivity, enabling designers to press efficiency limits without jeopardizing dependability.
In LED illumination and laser diodes, where joint temperature directly impacts effectiveness and color security, AlN substrates significantly boost luminescent result and operational life expectancy.
Its coefficient of thermal development (CTE ≈ 4.5 ppm/K) also very closely matches that of silicon (3.5– 4 ppm/K) and gallium nitride (GaN, ~ 5.6 ppm/K), reducing thermo-mechanical stress and anxiety throughout thermal biking.
3.2 Electric and Mechanical Dependability
Beyond thermal efficiency, AlN uses low dielectric loss (tan δ < 0.0005) and stable permittivity (εᵣ ≈ 8.9) across a wide regularity variety, making it suitable for high-frequency microwave and millimeter-wave circuits.
Its hermetic nature stops wetness access, eliminating deterioration dangers in moist atmospheres– a crucial advantage over natural substrates.
Mechanically, AlN possesses high flexural strength (300– 400 MPa) and firmness (HV ≈ 1200), making certain resilience throughout handling, setting up, and field operation.
These qualities jointly contribute to boosted system reliability, reduced failure rates, and lower total price of possession in mission-critical applications.
4. Applications and Future Technological Frontiers
4.1 Industrial, Automotive, and Defense Systems
AlN ceramic substratums are currently common in innovative power modules for commercial electric motor drives, wind and solar inverters, and onboard battery chargers in electrical and hybrid cars.
In aerospace and protection, they support radar systems, digital warfare devices, and satellite interactions, where efficiency under severe problems is non-negotiable.
Medical imaging tools, including X-ray generators and MRI systems, also gain from AlN’s radiation resistance and signal honesty.
As electrification trends increase across transport and power fields, need for AlN substrates continues to grow, driven by the requirement for small, efficient, and trusted power electronics.
4.2 Emerging Combination and Lasting Development
Future advancements focus on incorporating AlN right into three-dimensional product packaging designs, ingrained passive components, and heterogeneous assimilation systems combining Si, SiC, and GaN devices.
Research into nanostructured AlN films and single-crystal substrates aims to more boost thermal conductivity towards theoretical limits (> 300 W/(m · K)) for next-generation quantum and optoelectronic tools.
Initiatives to reduce manufacturing costs through scalable powder synthesis, additive manufacturing of intricate ceramic structures, and recycling of scrap AlN are acquiring energy to boost sustainability.
In addition, modeling tools making use of limited aspect evaluation (FEA) and machine learning are being utilized to optimize substrate design for particular thermal and electric lots.
In conclusion, aluminum nitride ceramic substratums stand for a foundation innovation in modern electronic devices, distinctly connecting the void in between electrical insulation and remarkable thermal transmission.
Their duty in making it possible for high-efficiency, high-reliability power systems highlights their calculated value in the recurring development of digital and energy innovations.
