1. Intro to Oil Immersed Transformers
In the detailed web of our modern-day electrical grid, transformers play an indispensable function, quietly tipping voltage backwards and forwards to make sure electrical power can be transferred successfully over fars away and distributed safely to our homes and industries. Among the various types readily available, the oil immersed transformer stands as a testimony to tested reliability and durability. For years, these workhorses have developed the foundation of power systems worldwide.
An oil submersed transformer is a type of electric transformer that makes use of a specific insulating oil as both a coolant and a shielding tool. This design is mostly made use of for tool to high-power applications, making it a cornerstone of electric facilities. This overview dives deep into the globe of oil submersed power transformers and oil immersed circulation transformers, exploring their modern technology, applications, and their progressing duty in a period of digitalization and renewable energy.
1.1 What is an Oil Immersed Transformer?
At its core, an oil submersed transformer consists of a magnetic core and copper or light weight aluminum windings housed inside a sealed tank loaded with shielding oil. The key function of the oil is twofold:
1. Insulation: The oil has high dielectric toughness, efficiently insulating the high-voltage windings from the transformer’s core and grounded tank. This stops brief circuits and electrical failures.
2. Cooling: As the transformer runs, the windings produce substantial heat because of I ² R losses. The flowing oil absorbs this heat, convects it to the transformer’s container walls, and dissipates it into the bordering air. Bigger units typically include radiators or fins to boost the surface for extra effective cooling.
This dual-purpose use of oil makes the oil submersed transformer exceptionally reliable and robust, with the ability of handling high tons and enduring short-term overloads better than many dry-type alternatives.
1.2 Oil Immersed Power Transformer vs. Oil Immersed Distribution Transformer
While all these devices are oil immersed transformers, they serve unique functions within the power system network. Understanding the distinction is important.
An oil immersed power transformer is a heavyweight, normally made use of in transmission networks at generating stations and major substations. Their key role is to “step-up” the voltage created at the nuclear power plant to exceptionally high levels (e.g., 138 kV, 230 kV, 500 kV and above) for efficient long-distance transmission, and to “step-down” the voltage at obtaining substations for additional distribution. They are identified by their very high power rankings (usually surpassing 100 MVA), complicated building, and on-load tap changers for voltage guideline.
An oil involved circulation transformer, on the other hand, does the final action in the power delivery chain. It takes the medium voltage from the transmission lines (e.g., 11 kV, 33 kV) and tips it down to the low voltages (e.g., 400/230 V) made use of by commercial and residential consumers. You commonly locate them on utility posts (pole-mounted) or on ground-level pads (pad-mounted). They are smaller sized, have lower power scores (typically as much as 2,500 kVA), and are designed for maximum effectiveness at lower, a lot more constant lots.

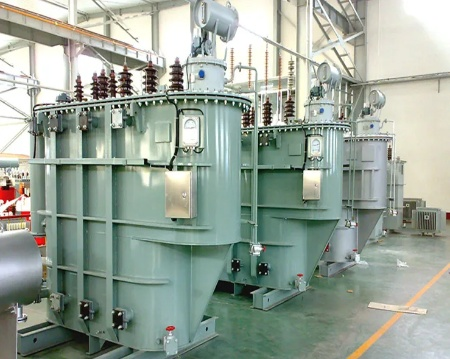

(Oil immersed power transformer)
2. Secret Benefits of Oil Submersed Transformers
The long-lasting popularity of the oil submersed transformer is not unexpected. It supplies a collection of engaging advantages that make it the recommended option for many demanding applications.
2.1 Superior Air Conditioning and Overload Ability
The remarkable thermal ability of oil contrasted to air permits an oil submersed power transformer to manage and dissipate warm far more efficiently. This equates to a higher overload capability. Throughout periods of height electrical energy need, an oil immersed transformer can take care of short-term overloads without suffering damages, a critical attribute for keeping grid security. The oil’s flow ensures also warmth circulation, stopping local locations that can degrade insulation gradually.
2.2 Enhanced Insulation and Long Service Life
The mix of premium mineral oil and diligently impregnated paper insulation creates a dielectric system of remarkable stamina. This durable insulation system shields the transformer from voltage rises and transients, adding to an operational life-span that can encompass 30-40 years or more with correct maintenance. The secured container likewise shields the inner parts from dampness, dust, and various other climatic contaminants.
2.3 High Effectiveness and Cost-Effectiveness
For high-power applications, the oil submersed transformer is frequently the most affordable option. The products made use of– mineral oil, steel storage tank, and copper/aluminum windings– supply a desirable balance of efficiency and cost. The high efficiency of these transformers, particularly at their ranked load, leads to lower energy losses over their life time, leading to substantial cost savings for utility firms and big industrial customers.
3. Hot Subjects and Future Trends
The world of oil submersed transformers is not static. It is constantly evolving to fulfill new obstacles and integrate with contemporary innovations.
3.1 Naturally Degradable and Fire-Resistant Oils
Environmental and safety and security problems are driving a significant shift far from conventional mineral oil. The marketplace is quickly adopting oil immersed transformers filled with eco-friendly esters (synthetic or all-natural). These oils offer a greater fire factor (making them K-class fire-resistant), are less poisonous, and are readily biodegradable, significantly minimizing the environmental effect in instance of a leak. This trend is making oil immersed distribution transformers more secure for installation in city locations and ecologically delicate places.
3.2 Assimilation with Smart Grids and IoT
The contemporary oil involved power transformer is ending up being a smart node in the wise grid. Sensors are being integrated to keep track of vital criteria in real-time, including:
Dissolved Gas Analysis (DGA): Finding mistake gases generated within the oil to predict incipient mistakes.
Temperature Monitoring: Tracking top-oil and hotspot temperatures.
Tons and Power Quality Monitoring.
This data, transmitted through IoT (Internet of Things) systems, makes it possible for predictive upkeep, protects against unexpected interruptions, and enhances transformer application and life-span.
3.3 Sustaining the Renewable Resource Shift
The worldwide push for renewables is producing brand-new demand for oil submersed transformers. Large solar farms and wind power installations require robust oil immersed power transformers to tip up the produced voltage to transmission degrees. Furthermore, the intermittent nature of renewables areas greater stress and anxiety on grid elements, and the proven integrity and overload capacity of oil immersed transformers make them optimal for this essential duty.
4. Choice and Upkeep Finest Practices
Picking the ideal transformer and maintaining it correctly is vital to a trustworthy power system.
4.1 How to Select the Right Oil Immersed Transformer
Selecting in between an oil submersed power transformer and an oil submersed distribution transformer depends on the application. Trick considerations include:
1. Voltage Level and kVA Ranking: Match the transformer’s specs to your system’s needs.
2. Application: Transmission substation, industrial plant, or industrial distribution.
3. Area: Indoor vs. exterior, environmental problems, and fire security laws (which may affect the choice of insulating oil).
4. Effectiveness Criteria: Abide by local performance criteria like DOE (United States) or EU CoC (Europe).
5. Spending plan: Think about both the first capital price and the complete price of ownership, consisting of losses.

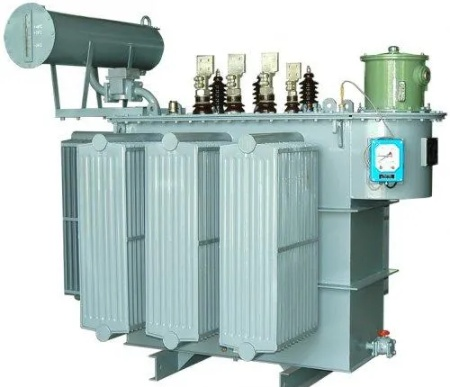

(Oil immersed distribution transformer)
4.2 Necessary Maintenance for Long Life
Aggressive maintenance is vital for any kind of oil immersed transformer. A detailed program ought to include:
1. Normal Oil Tasting and Screening: Periodic DGA and screening of dielectric stamina and dampness web content are one of the most reliable methods to analyze the health of the transformer.
2. Bushing and Insulation Examination: Aesthetic look for fractures, contamination, or leakages.
3. Tap Changer Upkeep: Normal inspection and maintenance of on-load or off-load tap changers.
4. Keep it Tidy and Dry: Making certain the container exterior, radiators, and breathers are tidy and practical.
The oil submersed transformer, in its roles as both a high-capacity oil immersed power transformer and an ubiquitous oil immersed circulation transformer, remains an irreplaceable component of our international energy facilities. Its tested design, combined with continuous technologies in protecting liquids and digital monitoring, guarantees it will certainly continue to be a trustworthy, efficient, and smart solution for powering our globe for decades to come. As we construct the grids of the future, incorporating more renewables and electronic knowledge, the durable and versatile oil submersed transformer will definitely be at the heart of it.
